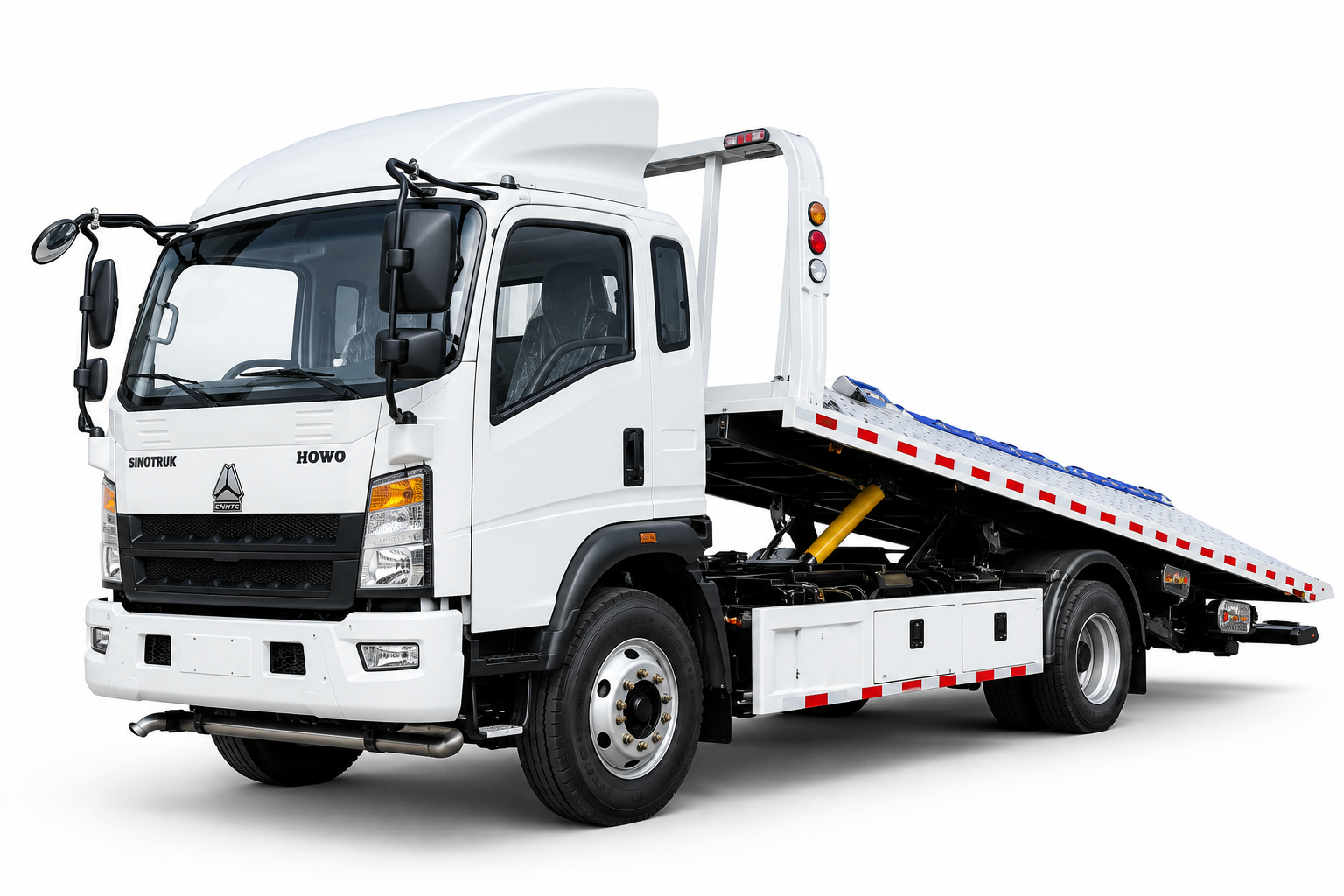

Model: ZZ1168K4215C1R RHD
Cabin: 2080 cabin, air suspension seat, 1 berth, with deflector
Engine: WP4.6NQ220, 220HP
Transmission: HW95508STC, 8F,2 R
Tires: 10R22.5,with 1 spare tire
Front Axle: 145, With Drum Brake
Rear Axle: 153, i=5.571, With Drum Brake,
Steering Box: Right Hand Drive
High Steel Bumper
Fuel Tank: 200L
Battery: 120AH
With ABS
Integrated 8-ton Recovery Deck System
Structural Specifications
Deck plate: 6mm checker plate
Slide rails: 10mm hardened steel
Dual subframe construction
Perimeter frame: 16mm steel plate
Reinforced cross members (150% density)
Heavy-duty angle-iron bracing (100×100×10mm)
Vertical stiffening ribs at 300mm intervals
Hydraulic System
Main lift cylinder: Ø100mm
Auxiliary cylinder: Ø90mm
4-ton hydraulic winch
4-ton recovery tow arm
Accessories
(1) Pair L-type tire cradles
(2) Wheel chocks
(2) Recovery dollies
(4) 10,000-lb rated tie-down straps
Rear tow arm assembly
Surface Treatment
Electrodeposition primer coating
Carnauba wax corrosion protection
