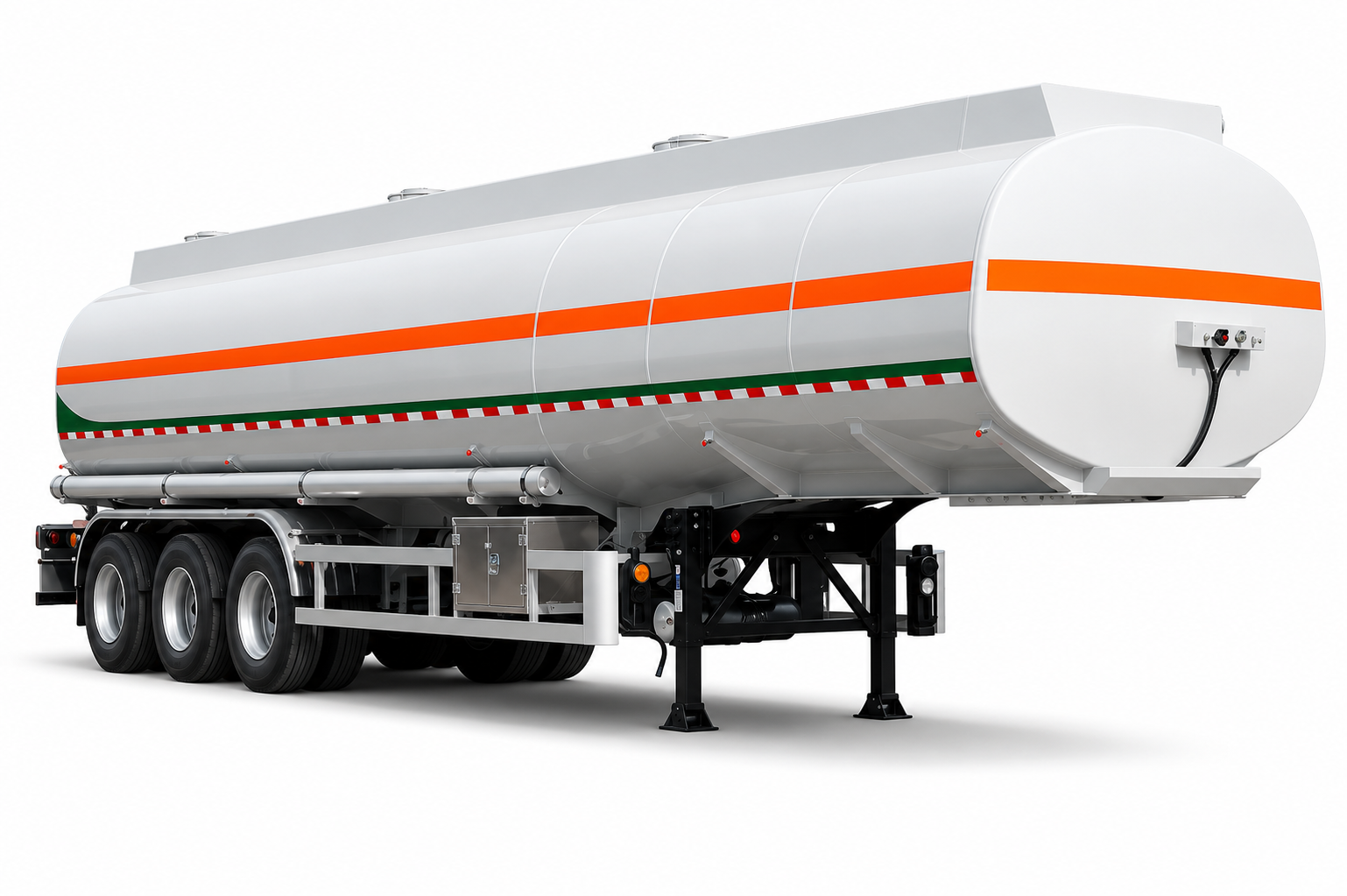

43 m³ Fuel Tank Semi-Trailer

• Tank Design: Square-round (semi-elliptical) gooseneck tanker body
• Total Capacity: 43 cubic meters (43,000 liters)
• Compartments: 3 equal compartments
• Tank Material: Q235B carbon steel
• Tank Shell Thickness: 4.2 mm
• Internal Structure: Equipped with anti-surge (wave-breaker) baffles

Loading & Discharge System

• One European standard aluminium alloy manhole per compartment
• One 4-inch aluminium alloy pneumatic bottom valve per compartment
• One API valve per compartment
• Two 3-inch × 6-meter discharge hoses stored on the tank top
• One 4″/3″ reducer coupling

Safety & Accessories

• Front access ladder
• Steel side under run protection
• Reinforced rear protection bar
• Steel mudguards
• Toolbox mounted on the left side
• 24V LED lighting system
• One spare wheel carrier
• Two 4 kg fire extinguishers
• Tank painted light grey

Chassis & Running Gear

• Axles: 3 × FUWA 13-ton drum brake axles
• Suspension: FUWA heavy-duty reinforced mechanical suspension
• Leaf Springs: 7-leaf spring packs
• ABS: Chinese-manufactured ABS braking system
• Tires: Not included
• Rims: 12 steel wheel rims

Coupling & Support

• Landing Gear: FUWA 28-ton two-speed landing legs
• King Pin: JOST 90# (3.5-inch) king pin

Weight

• Tare Weight: Within 9 tons (≤ 9,000 kg)
