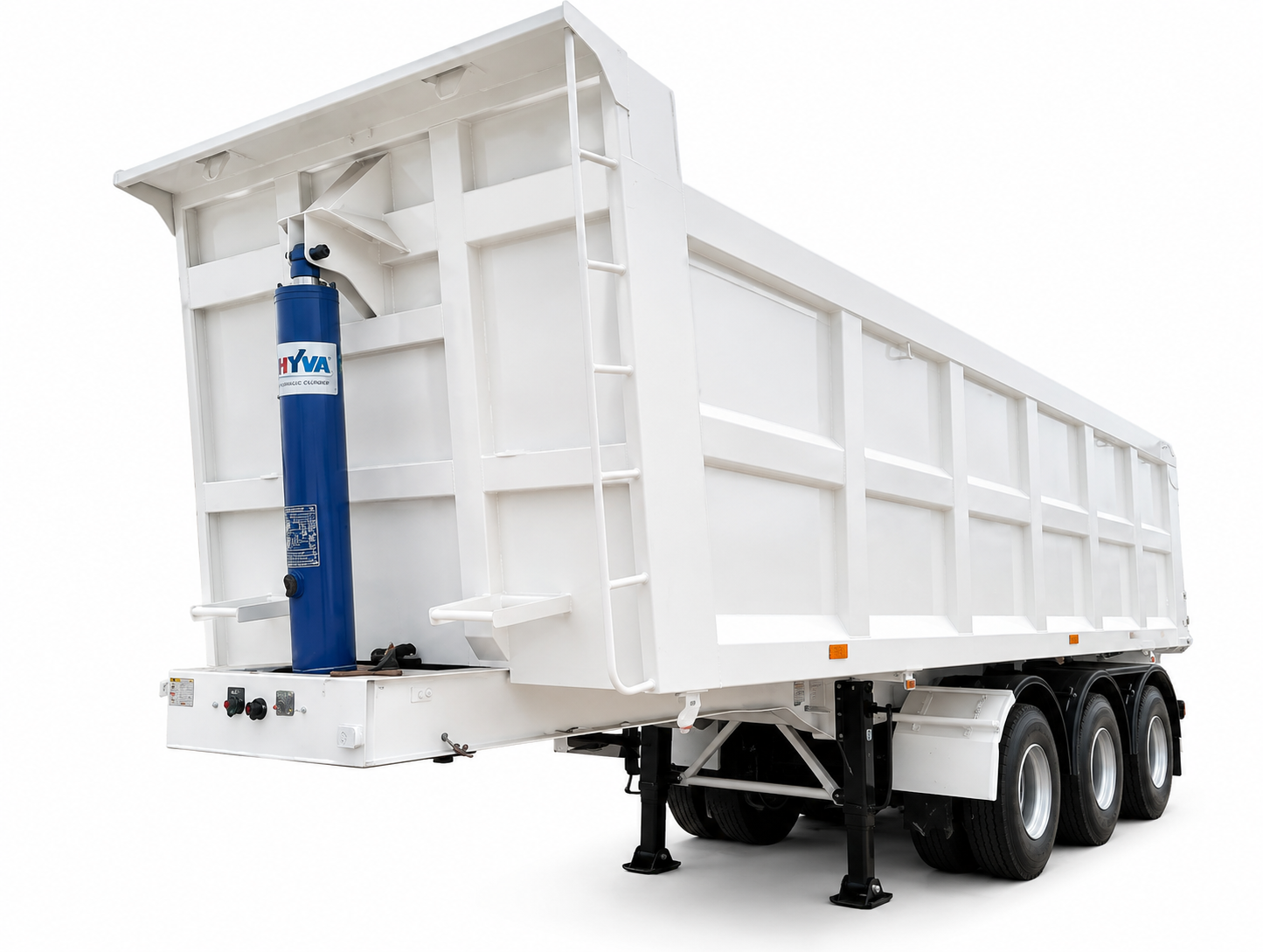

Tipping Trailer

Overall Dimensions: 8,800 × 2,580 × 3,500 mm
Internal Dimensions: 8,000 × 2,450 × 1,650 mm
Main Longitudinal Beams: 500 mm beam height, made of T700 high-strength steel
Body Panels: T700 steel construction; 3 mm floor plate and 3 mm side panels
King Pin: 90# (3.5-inch) bolt-on king pin
Landing Gear: 28-ton capacity landing legs
Axles: FUWA axles, 13,000 kg × 3; equipped with 16-ton brake linings
Suspension: Reinforced heavy-duty 3-axle American-type mechanical suspension
Leaf Springs: 10 leaves, 90 mm wide × 16 mm thick
Tires: 315/80R22.5
Rims: 9.0-22.5
Braking System: Air brake system with WABCO relay valve
Toolbox: One standard toolbox included
Front Bulkhead: Equipped with two spare wheel carriers, capable of holding two spare tires, complete with retaining plates and mounting accessories
Color: White
